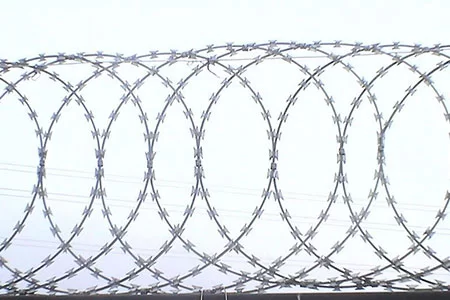

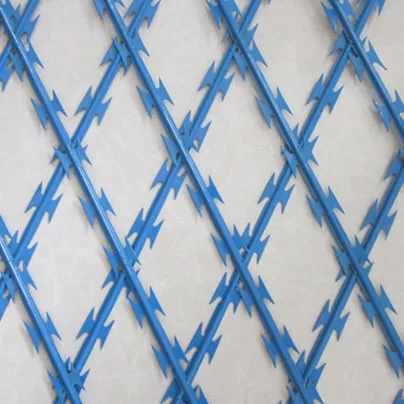

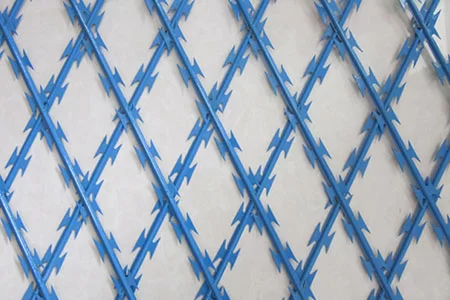

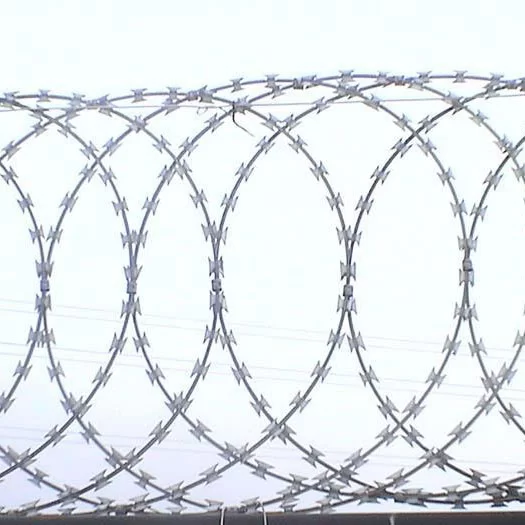

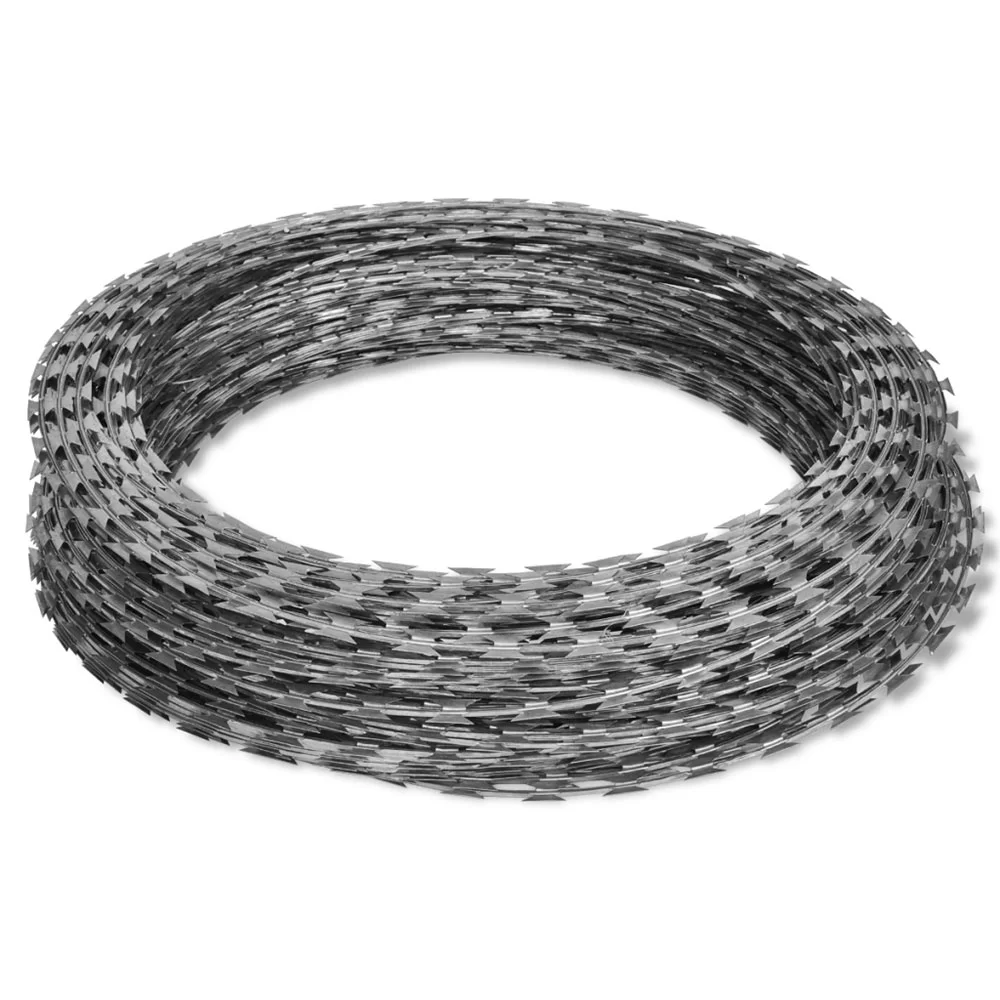

Razor Wire
Razor Wire
Product Description
Product Description
1.Material: High carbon steel, galvanized steel sheet and wire, stainless steel sheet and wire
2.Surface Treatment: Electro galvanized, Hot dipped galvanized, PVC coated.

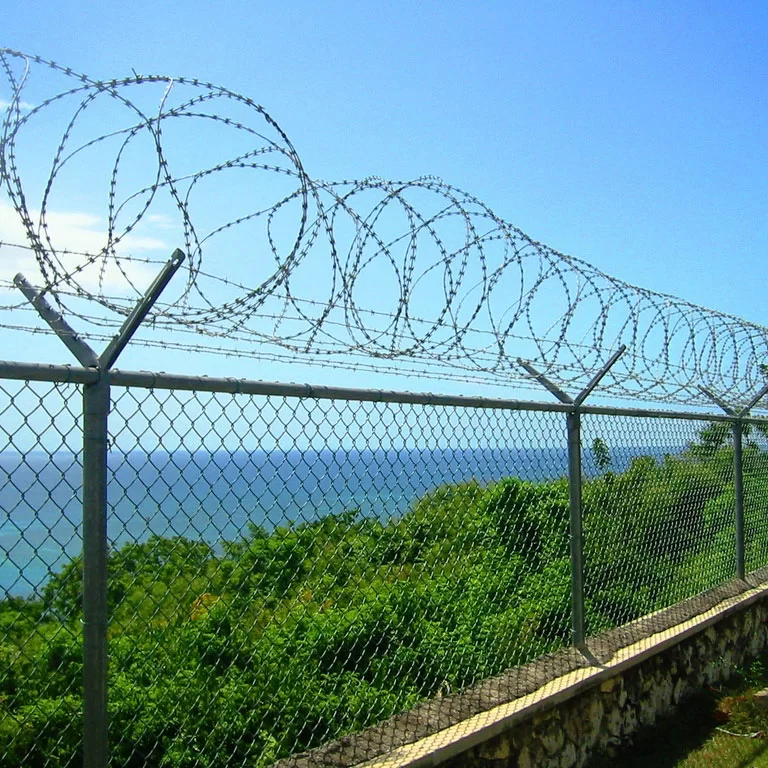

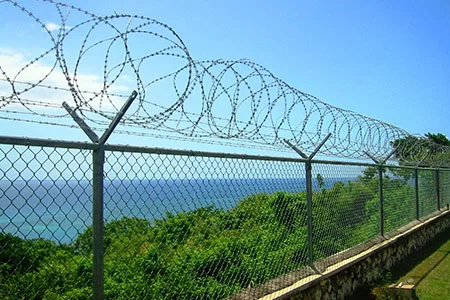

3.Application:Widely used in military, prisons, detention centers, government buildings and pasture boundary, railway, highway isolated protection, etc.
4.Packing: Inner packing with waterproof paper, outside with woven bag, or as customer’s requirement.
Specification
Outside diameter(mm) | No. Of loops | Standard length per coil(m) | Type | Notes |
450 | 33 | 7-8 | CBT-60.65 | Single coil |
500 | 56 | 12-13 | CBT-60.65 | Single coil |
700 | 56 | 13-14 | CBT-60.65 | Single coil |
960 | 56 | 14-15 | CBT-60.65 | Single coil |
450 | 56 | 8-9 | BTO-12.22.25.30 | Cross type |
500 | 56 | 9-10 | BTO-12.22.25.30 | Cross type |
600 | 56 | 10-11 | BTO-12.22.25.30 | Cross type |
600 | 56 | 8-10 | BTO-12.22.25.30 | Cross type |
700 | 56 | 10-12 | BTO-12.22.25.30 | Cross type |
800 | 56 | 11-13 | BTO-12.22.25.30 | Cross type |
900 | 56 | 12-14 | BTO-12.22.25.30 | Cross type |
960 | 56 | 13-15 | BTO-12.22.25.30 | Cross type |
980 | 56 | 14-16 | BTO-12.22.25.30 | Cross type |
Reference Number | Thickness（mm） | Wire Diameter（mm） | Barb Length（mm） | Barb Width（mm） | Barb Spacing（mm） |
BTO-10 | 0.5±0.05 | 2.5±0.1 | 10±1 | 13±1 | 26±1 |
BTO-12 | 0.5±0.05 | 2.5±0.1 | 12±1 | 15±1 | 26±1 |
BTO-18 | 0.5±0.05 | 2.5±0.1 | 18±1 | 15±1 | 33±1 |
BTO-22 | 0.5±0.05 | 2.5±0.1 | 22±1 | 15±1 | 34±1 |
BTO-28 | 0.5±0.05 | 2.5 | 28 | 15 | 45±1 |
BTO-30 | 0.5±0.05 | 2.5 | 30 | 18 | 45±1 |
CBT-60 | 0.6±0.05 | 2.5±0.1 | 60±2 | 32±1 | 100±2 |
CBT-65 | 0.6±0.05 | 2.5±0.1 | 65±2 | 21±1 | 100±2 |
